GMR-1501 Digial servo

GMR-1501 Digial servo

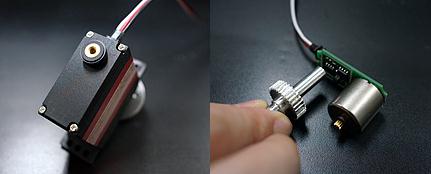

GMR(Giant-Magnetic-Resistance) contact-less position sensor Servo



GMR - 1501

GMR - 1501





Type of Gear

Metal  gear





Motor type

Coreless motor





Operating Voltage

4.8 V ~ 12.6 V





Neutral pulse

1.5 (Adjustabla)





Travel angle

40~45° at ±400㎲(Adjuastable)





Dead Band

1 ~ 2 ㎲ (Adjustable)





Speed

(sec/60°at 7.4V)

0.10





(sec/60°at 12.0V)

0.08





Torque

(kg/cm at 7.4V)

30





(kg/cm at 12.0V)

35





Weight (g)

65





Dimensions (mm)

40x20x41





Ball bearing

Basic(2BB)



Features:
1.  Ultra High Angle resolution(15bits/32,000steps): 0.01'
2.  Non-Contact position-sensing
3.  Superior performance of fast position responding time.
4.  No electrical sensing noise.
5.  High-power precision control.
6.  No operating angle limit(360' endless mechanical gear-train)
